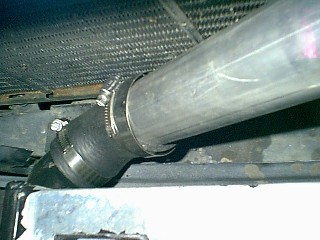

This is the lower hose from the turbo to intercooler. Here is a 90 degree
mandrel bend...
... hooked to a 45 degree bend. That's it to the lower hose besides connections
of rubber hose!

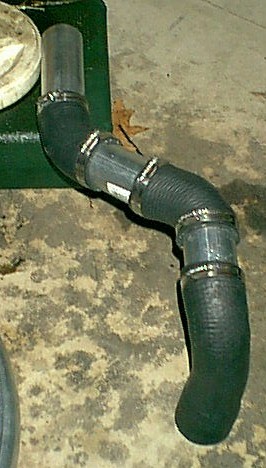

Here you can see the upper hose. This part is a rubber 90 degree piece,
a metal connection, a 45 degree rubber piece, a metal connection, a 45
degree piece, and a metal connection.

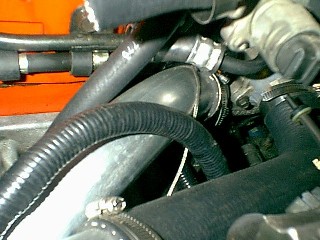

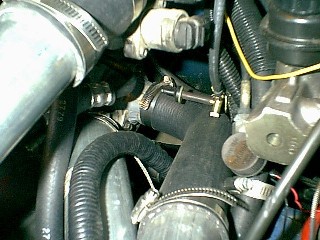

The
other part of the upper hose is this 45 degree rubber piece and metal connection
hooked to the 90 degree rubber piece in the previous picture.

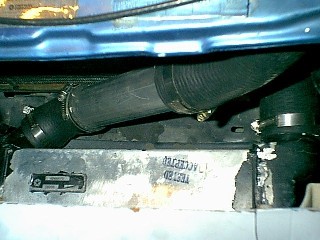

Here
you can see the upper and lower hose connections at the intercooler.

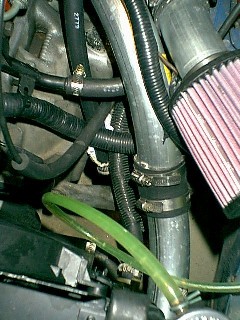

Here
is part of the inlet hose.

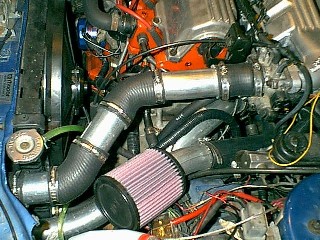

Voila!
All done.

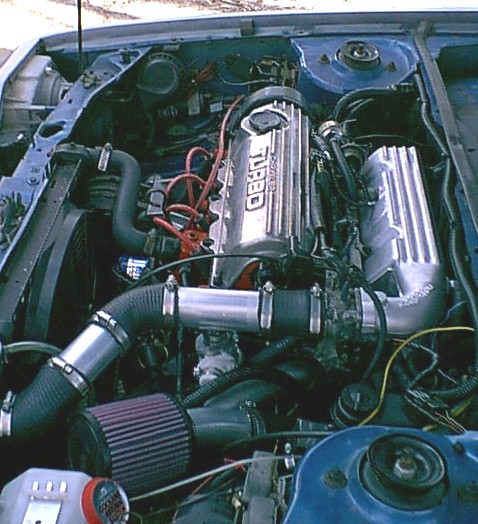

Done
and tested. With the open filter I noticed really bad "flapping" compressor
surge. Once the 1G Talon BOV was on all was quite. Notice the "toe of an
old-sock" (thanks Gus) serving as BOV filter until I get something different.
